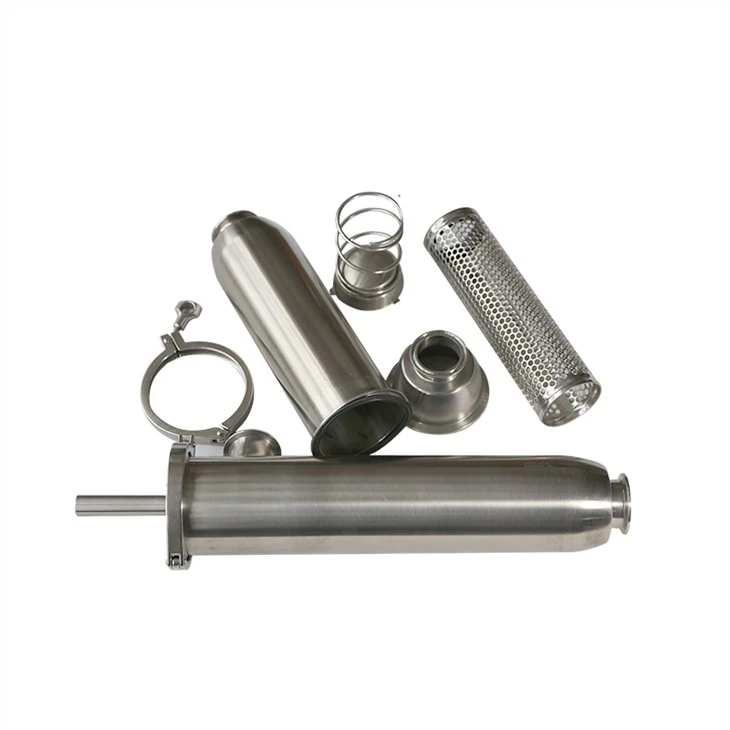

Stainless steel streamline 3A strainer filter is designed to remove large particles, seeds hops, and foreign particles from process stream. It including inline type and angle line type. It is fully 3A design and have 3A approval.
Vöruupplýsingar eins og hér að neðan
Type of strainer: Inline type and angle type
Length : 10-3/8" or 30-3/4"
Over mesh size: from 20 up to 200
Connection: Tri clamp
Connection size: from 1" up to 3"
Kynning á mjólkursíunni
Milk strainer have the similar design of Side entry strainers, With a 304SS body and strainer, It is a cheaper solution specially design for dairy industries.
Stainless steel Milk strainer is installed in the piping system where a changing of flow direction is required. The Milk strainer aims to remove solid particles or to protect the pump form big solid damage. Compare with Y-strainer, side entry strainer have more filtration areas and less pressure loss. The inner filter element could be Punching net (1mm to 3mm)with filter mesh (50-200 mesh) or ss sieve tube. The up body union design makes the cleaning of the strainer very easy and convenience. The inlet and outlet could be welding ends, tri clamp or union. Surface finish is mirror polish, Ra<>
Eiginleikar mjólkursíunnar
Efni: 316L ryðfríu stáli og ryðfríu stáli 304
Inline filters in short 15-3/4" length and long 35-3/8" length
Fáanlegt bæði í vélrænni pólsku og raffægðri
Mjólkursíið er með 3A vottorð
Body gasket is available with silicone ,EPDM ,Viton with FDA
